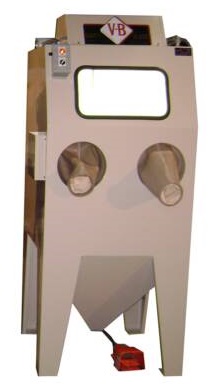

VBLH 3030 SERIES
Vapor Blast's Liquid Honer will turn your lab, tool room, machine/metal shop, or
production facility into a quality surface treatment center. Look at the advantages:
1.) Will reach crevices, fillets, edges, and corners in intricate parts that virtually impossible to clean,
deburr or polish by other means.
2.) Wet blast process using finer abrasive (up to 5,000 mesh) cleans parts without changing
tolerances. Will hold a 5 RMS.
3.) Vapor Blast Liquid Honing produces a very smooth surface with non-directional, finely etched, non-mirror (matte) finish.
4.) Peening with glass beads improves surface tensile strength by cold-working the metal.
What ever your surface treatment problem, Vapor Blast can solve it!
- Item: VBLH 3030
- Item Name: Vapor Blast Liquid Honing
- Interior Dimensions:30'' x 30'' x 40"
- Overall Dimensions:34" x 47" x 89"
- Door Opening Height: 36"
- Door Opening With: 24"
- Standard Number Of Doors: 1
- Carbide Nozzle, Diameter: 1/2''
- Stainless Steel Air Jet, Diameter:1/4"
- Slurry Pump Motor: 3/4 HP
- Exhaust Fan Motor: 1/2 HP
STANDARD FEATURES
*HEAVY-DUTY CABINET CONSTRUCTION, 10-12 GAGE MINIMUM STEEL WITH REINFORCING FRAME
HEAVY-DUTY CABINET CONSTRUCTION, 10-12 GAGE MINIMUM STEEL WITH REINFORCING FRAME*NEMA I, NEC, 230/460 VOLT, 3 PHASE, 60 HERTZ, PRIMARY SOURCE WITH CONTROL TRANSFORMER TO 115 VOLT, SINGLE PHASE, 60 HERTZ CIRCUIT
NEMA I, NEC, 230/460 VOLT, 3 PHASE, 60 HERTZ, PRIMARY SOURCE WITH CONTROL TRANSFORMER TO 115 VOLT, SINGLE PHASE, 60 HERTZ CIRCUIT*FILTERED EXHAUST SYSTEM WITH MANUAL SPRAY WASH SYSTEM AND 5” DIRECT DRIVE FAN ASSEMBLY
FILTERED EXHAUST SYSTEM WITH MANUAL SPRAY WASH SYSTEM AND 5” DIRECT DRIVE FAN ASSEMBLY *VAPOR BLAST SLURRY PUMP ASSEMBLY SUPPLIES THE BLAST NOZZLE AND UNIFORMLY SUSPENDS
VAPOR BLAST SLURRY PUMP ASSEMBLY SUPPLIES THE BLAST NOZZLE AND UNIFORMLY SUSPENDS ABRASIVE MEDIA IN THE SLURRY HOPPER. *PUMP FLUSHING SYSTEM (FRESH WATER) WITH CONTROL VALVE
PUMP FLUSHING SYSTEM (FRESH WATER) WITH CONTROL VALVE*FULL VIEW OPERATOR OBSERVATION WINDOW ... EASILY REPLACED SAFETY GLASS
FULL VIEW OPERATOR OBSERVATION WINDOW ... EASILY REPLACED SAFETY GLASS*ELECTRIC WINDOW WIPER SYSTEM WITH ADJUSTABLE SPEED CONTROL; WINDOW RINSE NOZZLES ARE
ELECTRIC WINDOW WIPER SYSTEM WITH ADJUSTABLE SPEED CONTROL; WINDOW RINSE NOZZLES ARE INTEGRATED IN WIPER ASSEMBLY *HIGH OUTPUT FLUORESCENT CABINET LIGHT SYSTEM
HIGH OUTPUT FLUORESCENT CABINET LIGHT SYSTEM *CABINET DOOR, RIGHT-HAND HINGED SWINGING ACTION. INTERLOCKED SAFETY SWITCH
CABINET DOOR, RIGHT-HAND HINGED SWINGING ACTION. INTERLOCKED SAFETY SWITCH*OPERATOR ARMPORTS FITTED WITH WEAR RESISTANT RUBBER GAUNTLETS AND REPLACEABLE ATTACHED RUBBER GLOVES
OPERATOR ARMPORTS FITTED WITH WEAR RESISTANT RUBBER GAUNTLETS AND REPLACEABLE ATTACHED RUBBER GLOVES*TYPE “S” BLAST GUN WITH 1/2” CARBIDE NOZZLE AND 1/4” STAINLESS STEEL AIR JET
TYPE “S” BLAST GUN WITH 1/2” CARBIDE NOZZLE AND 1/4” STAINLESS STEEL AIR JET*SINGLE PROCESS CONTROL, VIA ELECTRIC FOOT SWITCH, ACTUATING SOLENOID CONTROLLED COMPRESSED
SINGLE PROCESS CONTROL, VIA ELECTRIC FOOT SWITCH, ACTUATING SOLENOID CONTROLLED COMPRESSEDAIR SUPPLY TO BLAST NOZZLE*AIR GAGE; COMPRESSED AIR INTAKE FITTED WITH OSHA APPROVED AIR LOCK-OUT/BY-PASS VALVE
AIR GAGE; COMPRESSED AIR INTAKE FITTED WITH OSHA APPROVED AIR LOCK-OUT/BY-PASS VALVE*PERFORATED METAL WORK PLATFORM (1,000-LB CAPACITY)
PERFORATED METAL WORK PLATFORM (1,000-LB CAPACITY) *MACHINE SPECIFICATIONS IN COMPLIANCE WITH OSHA REGULATIONS
MACHINE SPECIFICATIONS IN COMPLIANCE WITH OSHA REGULATIONS*MACHINE PAINTED WITH HIGH GRADE INDUSTRIAL ENAMEL (TAN)
MACHINE PAINTED WITH HIGH GRADE INDUSTRIAL ENAMEL (TAN)MACHINE OPTIONS AND ACCESSORIES
*SETTLING TANK (PORTABLE INDEPENDENT UNIT)
SETTLING TANK (PORTABLE INDEPENDENT UNIT)TANK INCLUDES WEIR SYSTEM TO SETTLE OUT AND COLLECT ABRASIVE. AN OVERFLOW DRAIN FITTING CAN BE CONNECTED TO BUYER’S SEWER TO DISCHARGE THE SEPARATED WATER. THIS TANK RECEIVES THE WATER DISCHARGED FROM THE CABINET WINDOW WASH.
*SLURRY EVACUATOR SYSTEM
SLURRY EVACUATOR SYSTEMAN EFFICIENT SYSTEM THAT TOTALLY EVACUATES HOPPER SLURRY CONTENTS VIA AN ADJUSTABLE PNEUMATIC OPERATED DEVICE. THE SLURRY IS CONVEYED TO BUYER’S DISPOSAL CONTAINER WITH 8’ DISCHARGE LINE.
*SECOND SIDE LOADING DOOR ASSEMBLY
SECOND SIDE LOADING DOOR ASSEMBLYHINGED SWINGING ACTION. INTERLOCKED SAFETY SWITCH PREVENTS MACHINE OPERATION WHEN DOOR IS OPENED.
*AUTOMATIC FILTER WASH SYSTEM
AUTOMATIC FILTER WASH SYSTEMTIMER-CONTROLLED, AUTOMATIC SYSTEM OF FRESH WATER RINSE OF EXHAUST FILTER.
*STAINLESS STEEL CABINET AND HOPPER STRUCTURE
STAINLESS STEEL CABINET AND HOPPER STRUCTUREWITH NON-FERROUS INTERIOR PIPING SYSTEM AND COATED WORKTABLE.
*OPTIONAL VERTICAL SLIDING CABINET DOOR ASSEMBLY
OPTIONAL VERTICAL SLIDING CABINET DOOR ASSEMBLYFEATURINGDOUBLE PULLEY COUNTERBALANCED SYSTEM AND SELF-ACTIVATING SAFETY BRAKE. INTERLOCKED SAFETY SWITCH PREVENTS MACHINE OPERATION WHEN DOOR IS OPENED.
*INTEGRAL TURNTABLE – CABINET INTERIOR
INTEGRAL TURNTABLE – CABINET INTERIORHEAVY-DUTY, BALL BEARING SPINDLE MOUNTED, MANUAL ROTARY TURNTABLE ASSEMBLY.
*TUMBLING BARREL SYSTEM
TUMBLING BARREL SYSTEM BARREL WITH LOCKING PARTS DOOR IS MOUNTED ON A HEAVY-DUTY HINGED BLAST CABINET DOOR
*VANE-CHEVRON SEPARATOR
VANE-CHEVRON SEPARATOREXHAUST SYSTEM WITH VANE-CHEVRON SEPARATOR. THIS STAINLESS STEEL ENTRAINMENT SEPARATOR EFFICIENTLY DROPS OUT MEDIA PARTICULATES AND WATER DROPLETS FROM THE EXHAUST GAS STREAM. THE RECOVERED EXHAUST PRODUCTS ARE RETURNED TO THE BLAST CABINET FOR RE-USE.
*CLOSED LOOP RINSE TANK & PUMP ASSEMBLY
CLOSED LOOP RINSE TANK & PUMP ASSEMBLYFEATURING STAINLESS STEEL CONSTRUCTION AND DIAPHRAGM PUMP. TANK INCLUDES FOUR (4) COMPARTMENTS WITH THREE (3) REMOVABLE BAFFLES TO SETTLE OUT AND COLLECT ABRASIVE
*4-STAGE EXHAUST SYSTEMS
4-STAGE EXHAUST SYSTEMS*EXHAUST SYSTEM MONITOR
EXHAUST SYSTEM MONITOR*HOUR METER FOR BLAST TIME
HOUR METER FOR BLAST TIME*ADVANCED AUTOMATION
ADVANCED AUTOMATION ADVANCED AUTOMATION USING: SKEWED ROLLER, PINCHED ROLLER, CONVEYORS, INLINE CONVEYORS, INDEXING TURNTABLES, ROTARY TUMBLING BARRELS, ROTARY SPINDLES, GUN OSCILLATION, CARRIAGE SHUTTLE
LIQUID HONING UNITS: BLAST/ WASH/ RINSE/ DRY
FROM SIMPLE TO COMPLEX SYSTEMS
